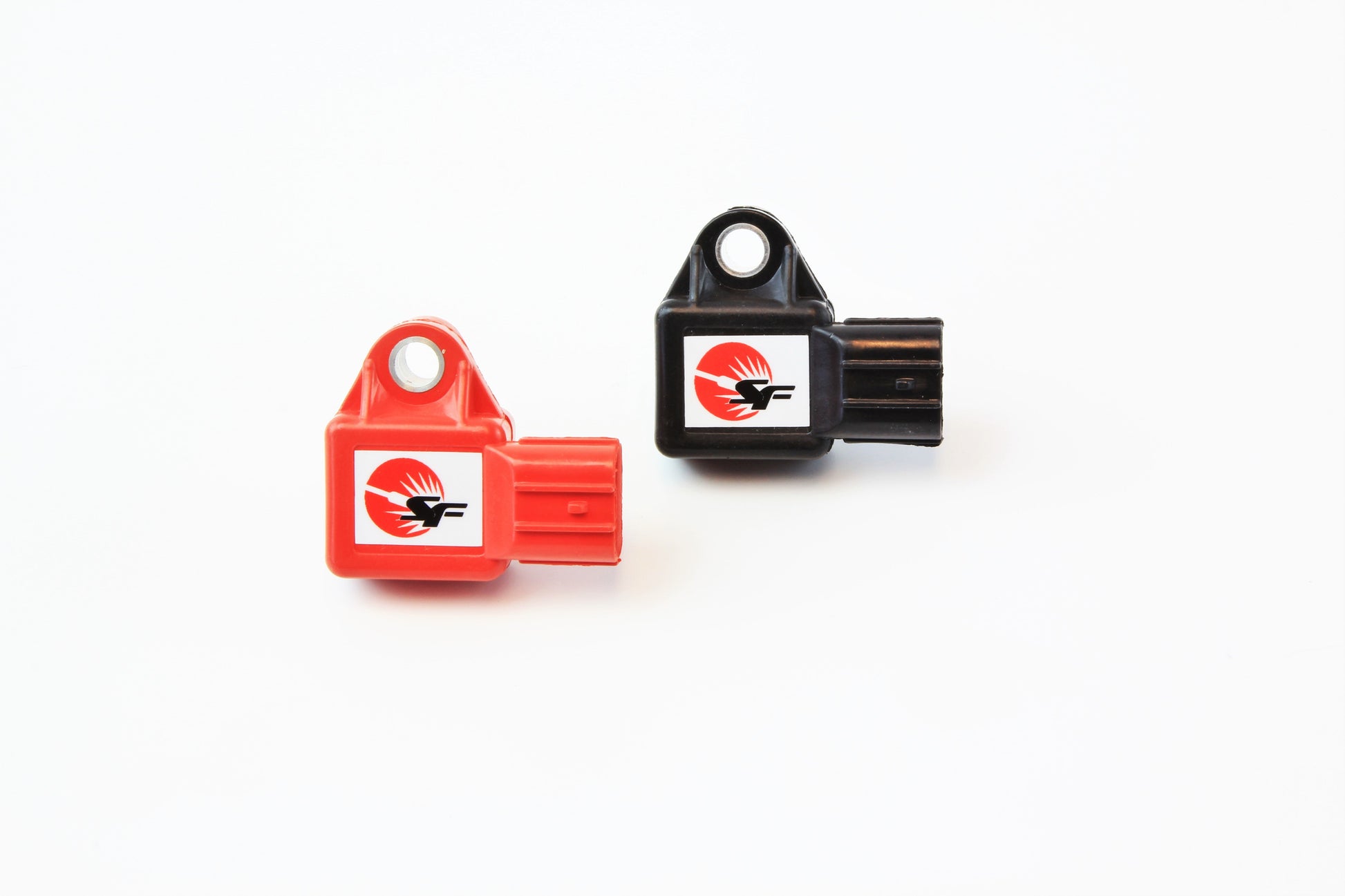

SpeedFactory Racing 7 Bar MAP Sensor for K-Series (1-85+PSI)

Our SpeedFactory 7 Bar MAP (Manifold Absolute Pressure) sensors use state of the art bipolar op amp circuitry with thin film resistor networks built into each micro chip.

Pressure changes are calculated on a true linear 0-5 volt scale via a specially designed silicon pressure sensor that also compensates for temperature changes. The unique ability to compensate for temperature changes allows our MAP sensor to remain a minimum of 99% accurate from 32 degrees F to 180 degrees F through out its range of scale.

With the true linear pressure vs. voltage scale there is never a need to re-tune at different altitudes as with other sensors.

SpeedFactory 7 Bar MAP sensors can precisely calculate boost pressure from 1-85+ psi while still allowing smooth stock OEM drivability at any boost level.

Conveniently packaged in an OEM dimensional housing for easy install and an OEM look.

Key features:

*Precisely calculates boost pressure from 1-85+ psi
* 40 to 260 degrees Fahrenheit temperature operating range
* Able to respond from 10% of the pressure scale to 90% of the pressure scale in .001 seconds (the fastest response time of any MAP sensor on the market).
* Automatic temperature compensation.
* True linear scaling for perfect drivability at all boost and vacuum levels.
* Compatible with all aftermarket engine management systems.
* Minimum of 99% accurate over full scale range under all conditions including temperature, altitude, and humidity changes.
* Allows smoother engine operation, higher boost levels, and better drivability than competitors turbo MAP sensors.
* Direct plug and play for an easy install and an OEM look. Dimensionally identical to the stock MAP sensor.
* Each sensor is hand assembled, pressure, and function checked in the USA for unparalleled quality control prior to shipping

NOTE: You cannot just plug this into a stock ECU and expect it to run properly, the ECU must be setup with the proper sensor calibration!

Our MAP sensors will fit K20 and K24 engines using factory K Series Style MAP sensor.

2006+ S2000
2002+ CR-V
2002+ RSX
2001+ EP-3
2006+ Civic
2004+ TSX
